Sistema de Adquisición Digital I



Plan View. Multi-channel system





Streamer: GEOMETRICS® GeoEel (24 channels)
In combination with low powered & high frequency Source:
  • GMSS® Sparker
  • Medium to High resolution (frequencies up to 1500Hz)
  • Power 100 J ‐ 7000 J
  • Typical sample rate: 0.125 ms.
  • Sparker depth: 0.5 - 1.5 m.

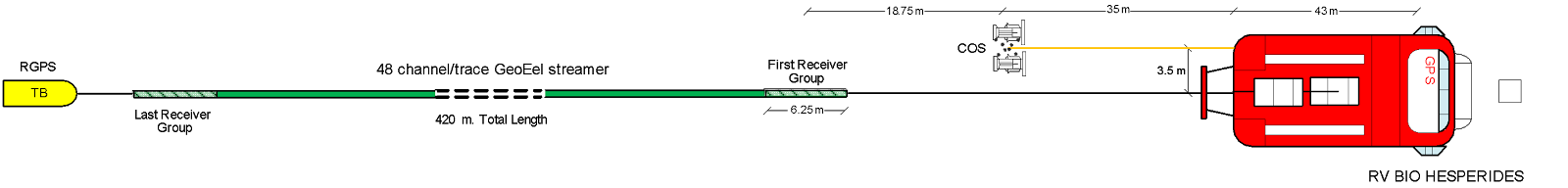

Plan View. Multi-channel system

Streamer: GEOMETRICS® GeoEel (48 channels)
In combination with high powered & low frequency Source:
  • Air gun cluster string
  • Capacity combinations single or cluster up to 150 cu.in.
  • Low resolution (frequencies below 400Hz)
  • Typical sample rate: 0.500ms.
  • Gun depth: 2.0 m.



*Shooting rates by distance: 6.25 meters or multiples depending on the depth and recording parameters.
